| Optical Fiber E2000 Patch Cords 1.Connector: FC,SC,ST,LC,MTRJ,MPO 2.Fiber end-face: PC, UPC and APC 3.IL<0.2 dB | |||||||||
SKYCOM
E2000

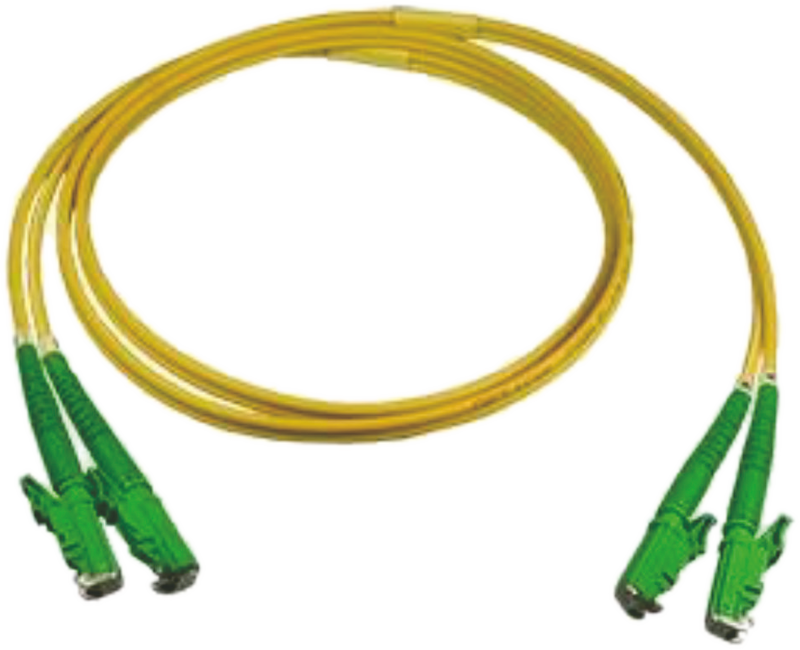

Optical Fiber E2000 Patch Cords
Description
Optical Fiber Patch Cord (Jumper) is a length of optical fiber with two ends adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. Joinwit patch cords assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.
Features
1. Low Insertion Loss
2. High Return Loss
3. Good Repeatability
4. Good Exchangeability
5. High Temperature Stability
Applications
1. Optical Fiber Communication Systems
2. Optic-fiber Data Communications
3. Optic-fiber Data Communications
4. Optic-fiber Access Networks
5. LAN Optic-fiber Sensors
Parameters
| Type | PC | UPC | APC |
| Insertion Loss (dB) | < 0.20 | < 0.20 | < 0.30 |
| Repeatability (dB) | < 0.10 | ||
| Changeability (dB) | < 0.20 | ||
| Return Loss (dB) | >45 | >50 | >60 |
| Operating Temperature (°C) | -40 ~ +80 | ||
| Storage Temperature (°C) | -40 ~ +85 | ||
| Durability | > 1000Times | ||
| Industry Standard | Telcordia GR-326-CORE | ||
