SKYCOM

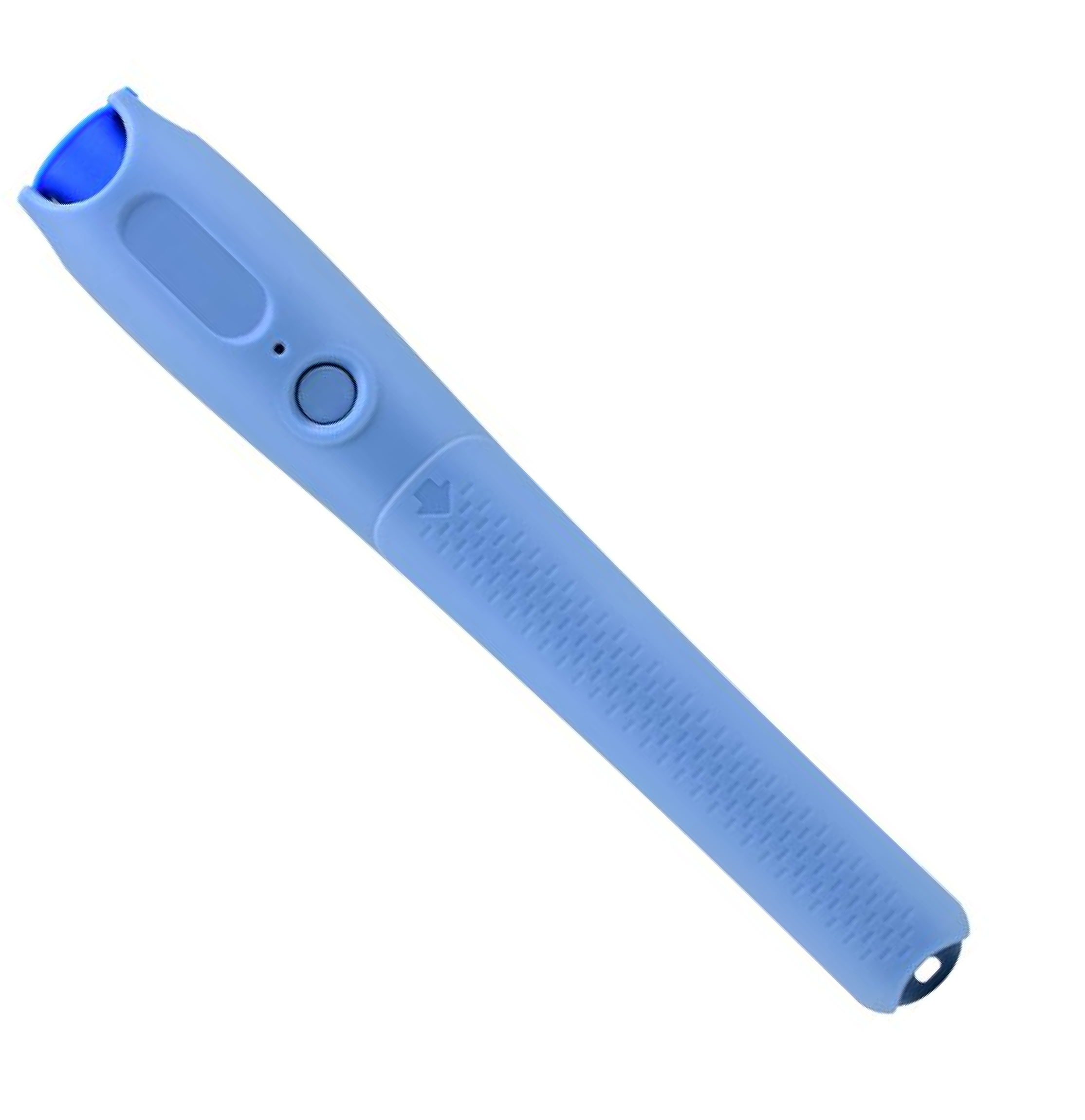

BML209
Visual Fault Locator
Main Characteristic
Bright red laser at 650nm Pulsed and CW operation
Standard AA alkaline batteries Fast locate the broken point Rugged and waterproof design 2.5mm universal connector
| Model | BML209-1 | BML209-10 | BML209-15 | BML209-20 | BML209-25 | BML209-30 |
| Wavelength | 650nm ± 20nm | |||||
| Output Power * | > 1mW | > 10mW | > 15mW | > 20mW | >25mW | >30mW |
| Dynamic Distance ** | 3~5 km | 8~10 km | >10 km | >10 km | >10 km | >10 km |
| Operation Mode | Pulsed (2Hz) and CW | |||||
| Connector *** | 2.5mm or 1.25mm Universal connector | |||||
| Storage Temperature | -20 -- +60 ℃, < 90%RH | |||||
| Operating Temperature | -10 -- +50 ℃, < 90%RH | |||||
| Power Supply | AA * 2 | |||||
* Tested by FOD1205H 650nm optical power meter
** The distance is tested by G.655, single mode, lab level fiber, loss<5dB/KM
*** Standard connector is 2.5mm UPP, 1.25mm UPP will be customized and increase the cost
Accessories
| Standard | Packing box(Quick Guide printed on box) | 1 |
