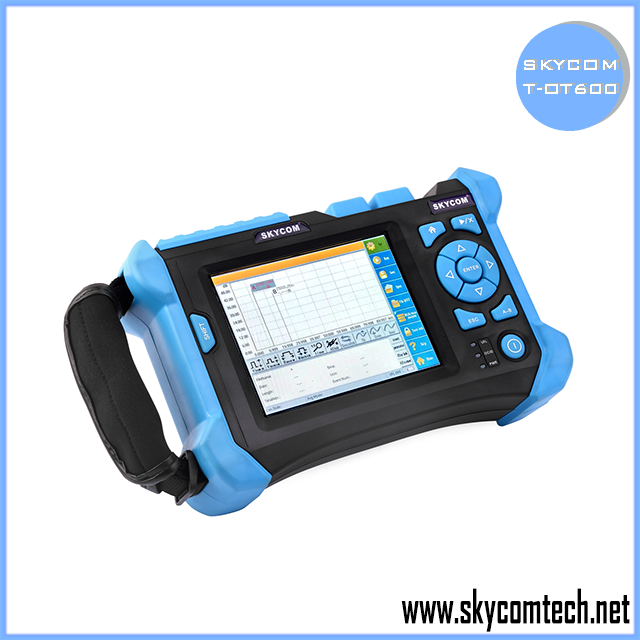

T-OT600 SV20A/B High Dynamic Range OTDR

T-OT600 SV20A/B OTDR, High Dynamic Range, Extra-Short Event Dead Zone
  • T-OT600 SV20A/B



Rugged design, light weight and easy operation
Applicable fiber: Fiber Optic Networks
<3m extra-short event dead zone
Wavelength: 1310/1550nm
Up to 32/30dB ;36/34dB High Dynamic Range
Distance Range: 4,8,16,32,64,128,256km
Pulse with: 10,30,80,160,320,640,1280,5120,1024ns
USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync
Memory capacity >800 traces
Built-in friendly-environment lithium battery with high capacity for over 8 hours of operating life
Display:640&times;480, 6.5 inch low-reflection TFT-LCD (touch screen)
One year Warranty
With Calibration Certificate and CE Certificate
Support English & Spanish
Can do OEM according to customer's requirement: add your logo or language


 Model T-OT600 SV20A/B SM OTDR
Wavelength(nm) 1310/1550
Dynamic range(dB) 32/30; 36/34
Pulse width (ns) 5,20,40,80,160,320,640,1280,2560,5120,10240,20480
Display 6.5 inch TFT LCD touch screen
Event blind zone (m) 3
Attenuation blind zone (m)            13
Linearity (dB/dB) &plusmn;0.05 dB/ dB
Loss threshold (dB) 0.05
 Loss resolution ratio (dB) 0.01
 Sampling resolution ratio (m)  0.125 to 8
Sampling point 32k
Distance uncertainty  (m) &plusmn;(1 m + 5&times;10-5&times; distance + sampling interval)
Distance scope (km) 0.3 to180
Memory capacity of trace SD Card (4G), > 10000 pieces
Duration of measurement Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable
Optical interface  FC/UPC+SC/UPC
Data interface USB interface, SD card interface
Visual Fault Locator Available
Power supply Lithium battery; continuing working duration &ge; 8 hours
Warranty period 12 months
