T-OT750 Series OTDR
SKYCOM

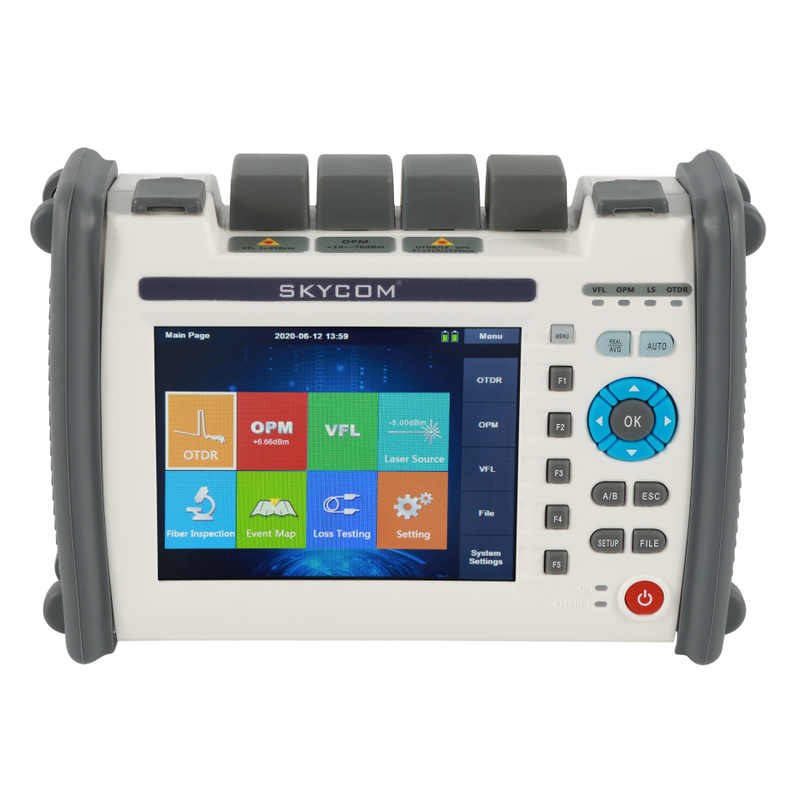

T-OT750 series tester is a comprehensive optical fiber measuring instrument, to solve the measurement of various parameters of optical fiber. It mainly USES OTDR function and has other common measuring functions.
Really reflected: ONE MACHINE, TESTING ALL!
Main parameter characteristics
Touch-sensitive and solid physical button work together for perfect user experience
Excellent for short-range measurementļ¼Dead zoneļ¼0.8m/4m
Maximum sampling resolutionļ¼5cm
Support multiple analysis functions on testing resultsļ¼Segment return lossļ¼Event point return lossļ¼Multi curves comparison, quick screen shots.
Complete user data interfaceļ¼USBļ¼Type Aļ¼ćMINI USBćSD card
Model Specification.
| Model No. | Wave Length(nm) | Dynamic Range(dB) | Deadzoneļ¼Mļ¼ |
| T-OT750-S-A28 | 1310/1550 | 28/26 | 0.8/4 |
| T-OT750-S-A32 | 1310/1550 | 32/30 | 0.8/4 |
| T-OT750S-A35 | 1310/1550 | 35/33 | 0.8/4 |
| T-OT750-S-A37 | 1310/1550 | 37/35 | 0.8/4 |
| T-OT750-S-B26 | 1625 | 26 | 0.8/4 |
| T-OT750-S-B32 | 1625 | 32 | 0.8/4 |
| T-OT750-S-C26 | 1650 | 26 | 0.8/4 |
| T-OT750-S-C32 | 1650 | 32 | 0.8/4 |
| T-OT750-S-AB35 | 1310/1550/1625 | 35/33/32 | 0.8/4 |
| T-OT750-S-AB42 | 1310/1550/1625 | 42/40/38 | 0.8/4 |
| T-OT750-S-AC35 | 1310/1550/1650 | 35/33/32 | 0.8/4 |
| T-OT750-M26 | 850/1300 | 22/26 | 2/5 |
| T-OT750-SM28 | 1310/1550/850/1300 | 28/26/22/26 | SMļ¼0.8/4 MMļ¼2/5 |
| T-OT750-SM35 | 1310/1550/850/1300 | 35/32/22/26 | SMļ¼0.8/4 MMļ¼2/5 |
Parameter
| Pulse Width | SM | 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs |
| MM | 850mmļ¼3nsļ¼5nsļ¼10nsļ¼20nsļ¼50nsļ¼100nsļ¼200nsļ¼500nsļ¼1us 1300mmļ¼3nsļ¼5nsļ¼10nsļ¼20nsļ¼50nsļ¼100nsļ¼200nsļ¼500nsļ¼1usļ¼2us | |
| Test Range | SM | 100mć500mć2kmć5kmć10kmć20kmć40kmć80kmć120kmć160kmć240km |
| MM | 850mmļ¼500mļ¼2kmļ¼5kmļ¼10km 1300mmļ¼500mļ¼2kmļ¼5kmļ¼10kmļ¼20kmļ¼40kmļ¼80km | |
| Minimum sampling resolution | 0.05m | |
| Maximum sampling point | 256,000 | |
| linearity | ≤0.05dB/dB | |
| Loss resolution | 0.001dB | |
| Distance resolution | 0.01m | |
| Distance accuracy | ±(1m+Range×3×10-5+Sampling resolution) ļ¼Regardless of the refractive indexļ¼ | |
| Result Storage | >16G SD card(Maximum support 128G)ļ¼Store more than 100000 pieces of data | |
| Complete user data interface | USB(Type A)ćMINI USBćSD card | |
| Monitor | 5.6 "TFT LCD 640 * 480 | |
| Battery | 7.4V/2500mAh X 2 lithium battery(Aviation certification) | |
| Working temperature | Working temperatureļ¼-10ā~+50āļ¼Storage temperatureļ¼-20ā~+70ā | |
| Relative humidity | ≤95%(No condensation) | |
| Size and weight | 215×155×68mm/1.1kg(Including 2 batteries) | |
| VFL | 10KMS, 10mWļ¼CW/2Hz | |
| OPM | Option Aļ¼-10dBm~-70dBm; Option Bļ¼+23dBm~-50dBm | |
| Laser source | Outputļ¼-5dBm±2dBļ¼Frequencyļ¼CW/270Hz/1KHz/2KHz | |
| GPS/GNSS | Customized | |
| WIFI/Bluetooth | Customized | |
