| Features ā¦Ā Stable operation with Multi-Action processĀ Ā Ā ā¦Ā Compact & handy outfit design ā¦Ā High precision cleaving blade with 26 cleave spots ā¦ One Step for Cleave ā¦ Automatic Blade Rotation ā¦ Automatic waste collection box | |||||||||

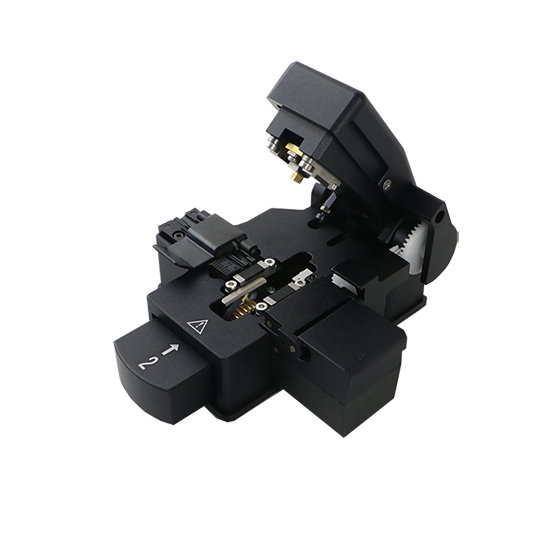

T-901A
SKYCOM
Specification
♦ Applicable fiber: Single Core Fiber, SM, MM, DS, NZ-DS, EDF, 125um OD of Nude Fiber Cable
♦ Applicable Diameter of Bare fiber:125μm
♦Applicable Coating Fiber Diameter: φ0.25mmćφ0.9mmćφ2.0mmćφ3.0mm
♦ Cut Length of Fiber Cableļ¼5~16mm (ā®0.25mm)ļ¹10~16mm (ā®0.9mm)
♦ Cleave Angle: ≤0.5°
♦ Blade Lifetime: 52000 timesļ¼2000*26ļ¼
♦ Dimensions: 103(W) x 93ļ¼D) x 47(H)mm.
♦ Cleaver Weight : 290g
♦ Cleaver Weight with waste collection box : 320g
Specification
♦ Applicable fiber: Single Core Fiber, SM, MM, DS, NZ-DS, EDF, 125um OD of Nude Fiber Cable
♦ Applicable Diameter of Bare fiber:125μm
♦Applicable Coating Fiber Diameter: φ0.25mmćφ0.9mmćφ2.0mmćφ3.0mm
♦ Cut Length of Fiber Cableļ¼5~16mm (ā®0.25mm)ļ¹10~16mm (ā®0.9mm)
♦ Cleave Angle: ≤0.5°
♦ Blade Lifetime: 52000 timesļ¼2000*26ļ¼
♦ Dimensions: 103(W) x 93ļ¼D) x 47(H)mm.
♦ Cleaver Weight : 290g
♦ Cleaver Weight with waste collection box : 320g
