T-903
SKYCOM
Product Description

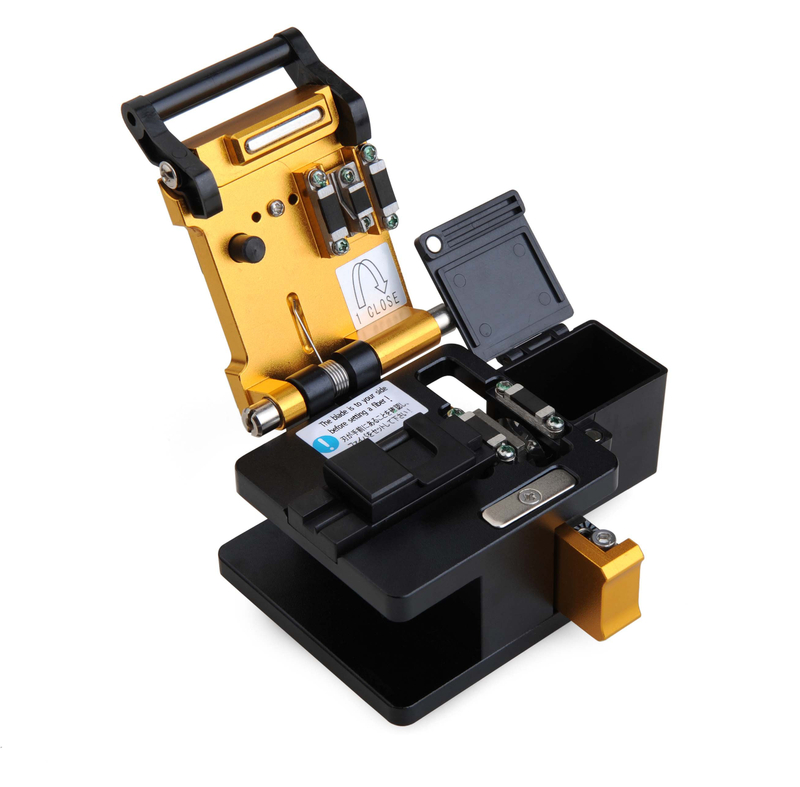

Optical fiber cleaver T-903
Skycom High Quality Optical Fiber Cleaver
Description
The T-903 is an economic multi-action and high precision fiber cleaver, standard length 16mm. Compact, slim and simple is available for application.
General
1) Weight: 0.45kg.
2) Dimensions: 63(W) x 76(D) x 63(H)mm.
Features
Stable operation with Multi-Action process
Typical cleave angle: 90°± 0.5°
Compact & handy outfit design
High precision cleaving blade with 16 cleave spots
Scratch-free anodized body surface
Simplified blade adjustment & replacements
Built-in maintenance tool attached: on the bottom
Specification
Applicable fiber: SM, MM, DS, NZ-DS, EDF, 125um OD of Nude Fiber Cable
Fiber Diameter: Core of Fiber Cable single(∮0.25 & 0.9mm)~12 multicore
Coating Diameter: 100~1000um
Cleave Angle: 90°± 0.5°
Cut Length of Fiber Cable 9~16mm (∮0.25mm),10~16mm (∮0.9mm)
Blade Lifetime: 36000 cleaves.
