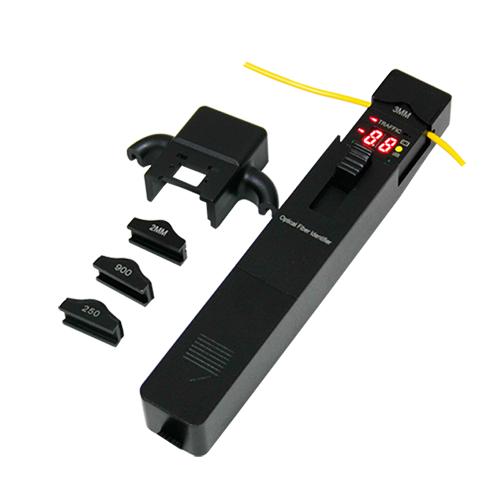

The SKYCOM T-FI350 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present, the intermittently audible tone is activated. | |||||||||
T-FI350
SKYCOM
The SKYCOM T-FI350 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present, the intermittently audible tone is activated.
The SKYCOM T-FI350 optical fiber identifier also recognize the modulation like,270Hz,1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated.
There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. The optical fiber identifier is powered by a 9V alkaline battery.
Features:
- Easy-to-use with “ONE KEY “operation.
- Efficiently identifies the traffic direction and frequency tonel (270Hz, 1KHz, 2KHz) with audible warning.
- Displays the relative core power.
- More accurate test with Sunshade.
- Easy-to-replace adaptors.
- Durable metal housing and quality construction.
- Lower power indication.
Main Characteristic
Type | T-FI350 | |
Identified Wavelength Range | 800-1700 nm | |
Identified Signal Type | CW, 270Hz±5%,1kHz±5%,2kHz±5% | |
Detector Type | Ø1mm InGaAs 2pcs | |
Adapter Type | Ø0.25 (Applicable for Bare Fiber),Ø0.9 (Applicable for Ø0.9 Cable ) | |
Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable ) | ||
Signal Direction | Left & Right LED | |
Singe Direction Test Range (dBm, CW/0.9mm bare fiber) | -46~10(1310nm) | |
-50~10(1550nm) | ||
Signal Power Test Range (dBm, CW/0.9mm bare fiber) | -50~+10 | |
Signal Frequency Display (Hz) | 270, 1k, 2k | |
Frequency Test Range (dBm, Average Value) | Ø0.9, Ø2.0, Ø3.0 | -30~0 (270Hz,1KHz) |
-25~0 (2KHz) | ||
Ø0.25 | -25~0 (1KHz,2KHz) | |
-20~0 (2KHz) | ||
Insertion Loss(dB, Typical Value) | 0.8 (1310nm) | |
2.5 (1550nm) | ||
Alkaline Battery(V) | 9 | |
Operating Temperature(°C) | -10-+60 | |
Storage Temperature(°C) | -25-+70 | |
Dimension (mm) | 196X30.5X27 | |
Weight (g) | 200 |
Accessories
Standard | T-FI350 Optical Fiber Identifier | 1 |
adapter heads | 4 | |
Alkaline battery | 1 | |
User’s manual | 1 | |
Cotton Stick and Soft Carrying case | 1 |
