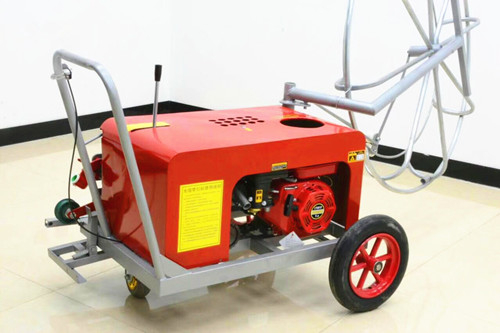

This machine is consisted with three parts: Engine,Gearbox
and convey unit. The jaw of convey unit move up and down, made
the cable set down. The floating machine use Gasoline engine
as the power. It also mount with a studdle, to support the
reacting force during the process of machine using, to keep the
machine not move.
It is easy to operate the machine.After manual start the
machine, there are four operating gear (Push,
Quick-pull,Neutral Gear,Slowly-pull),and choose required
gear.It is necessary to adjust the accelerator to idle state,
then engage a gear and control the accelerator.
After using, turn off the off switch.
The main specification of machine:
1. The traction effort:＞200 KGS
2. The traction speed: 1M-1.6M/S
3. The Max. opening size of convey port: 5mm-45mm
4. The suitable cable: under 288 core/ below 7*2.6/4*35m²
(Optical cable, Steel wire, Electric cable)
5. The belt size: The perimeter is 1000M0* Width 60mm
6. The engine gasoline tank: 4L(90/92#Gasoline)
7. The total power of device:3.7KW
8. The dimension of machine:80*60*80cm/ L*W*H
9. The size of Line bracket dimension: The out diameter 110CM*
The inner diameter 85CM( Dis-mountable)
10. The weight of machine: 90KGS
11. The Gear of machine: Push, Quick-pull,Neutral
Gear,Slowly-pull.
