| Key Features: * We are proud to present the TM-16F series of Optical Fiber Fusion Splicer,which incorporate key performance features expected in an advanced next generation fusion splicer: High Speed Splicing and Heating * Automatic ARC calibration according to environmental conditions * TM-16F will automatically splice/heat when the wind/heat cover is closed * Greater Accuracy: 4 motors core-to-core alignment (x-y directions) * New development: Digital Imaging and Vision Processing Metrology Ensure Great Accuracy * Technology for Smaller Size and Convenient Multipurpose Clamps * Environmental durability: Shock resistance (drop from 76cm on 5 faces) / Water resistance (equivalent to IPx2) / Dust resistance (equivalent to IP5x) | |||||||||

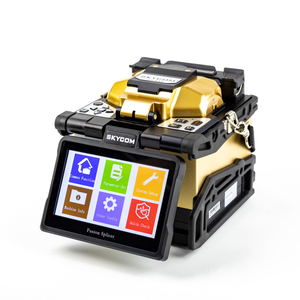

TM-16F
SKYCOM
Specifications
Applicable Fibers | SM (G.652), MM (G.651), DS (G.653), NZ/NZDS (G.655), BI (G.657), Pigtail, Drop Cable (rubber-insulated wire) | |
Average Splice Loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZ/NZDS), 0.02dB (BI) | |
Return Loss | ≥ 60dB | |
Quick splicing time | 8 seconds | |
Quick heating time | 25 seconds | |
Splicing Program | 50 groups | |
Protection Sleeve Length | 40mm, 45mm, 60mm | |
Operating Language | Chinese, English, Vietnamese, French, Portuguese, Spanish | |
Operating Conditions | -10~+50°C (temperature), 0~95% RH (humidity), 0~5000m (altitude) | |
Power Supply | AC input | AC adaptor: 100~240V input voltage, 50/60Hz; |
DC input | 12V, 5A output voltage (DC) | |
Battery | Inner lithium battery: 10.95V, 5.2 AH, 56.94Wh, Up to 180 times splice and heat Optional battery: 10.8V, 6.7 AH, 72.36Wh, Up to 300 times splice and heat | |
Monitor | Dual cameras, 9︒0 b i-directional, 4.3 inch high-light color screen | |
Fiber Image Magnification | X or Y Separately 400 times or Simultaneously 300 times |
Estimated Splice Loss | Available, accuracy: 0.01dB |
Electrode life | 5000 ARC discharges |
Cladding diameter | 80~150 μm |
Coating diameter | 100~3.000 μm |
Tension Test | 1.96~2.25N |
Storage of Splice Result | 10,000 groups of latest splice results / 100 splice images |
Splicing Mode | Auto & Manual & Full Auto & Stepping |
Optical Fiber Fixture | 3-in-1 cutting fixture; Multipurpose 1+N fixture (for SC/LC/FC connector) |
Terminal | USB for Memorizing and Updating |
Dimensions | 120(W)*120(D)*130(H)mm |
Weight | 1.4kg / 1.8kg (without / with battery pack) |
